Why You Need a Proper Network Cable Tester in 2026

A reliable ethernet cable tester isn't optional anymore — it's essential kit. Whether you're pulling Cat6 through a new office fit-out in Leeds or chasing a dodgy patch lead in a Manchester server room, guessing just doesn't cut it. I've literally wasted entire afternoons tracing faults by hand before I invested in decent testing gear. Never again.

The UK networking market has shifted massively this spring. With more businesses upgrading to 10GbE infrastructure and the largest tech companies in the UK demanding certified installations, the bar for cable verification is higher than ever. A basic continuity check won't satisfy modern specs.

So what separates a professional-grade RJ45 cable tester from the £8 LED-only jobs you'll find at Toolstation? Three things: accuracy of fault location (within ±1 metre), the ability to identify specific wire faults like split pairs, and a built-in network toner and probe for tracing cables through walls and ceiling voids. The best network cable tester UK professionals rely on ticks all three boxes without costing Fluke money.

Workplace cabling installations must comply with BS EN 50173 standards from BSI, which specify performance requirements for structured cabling. Using verified testing equipment helps demonstrate compliance during sign-off.

NOYAFA NF-8506: Why It's the Best Network Cable Tester UK Pros Are Switching To

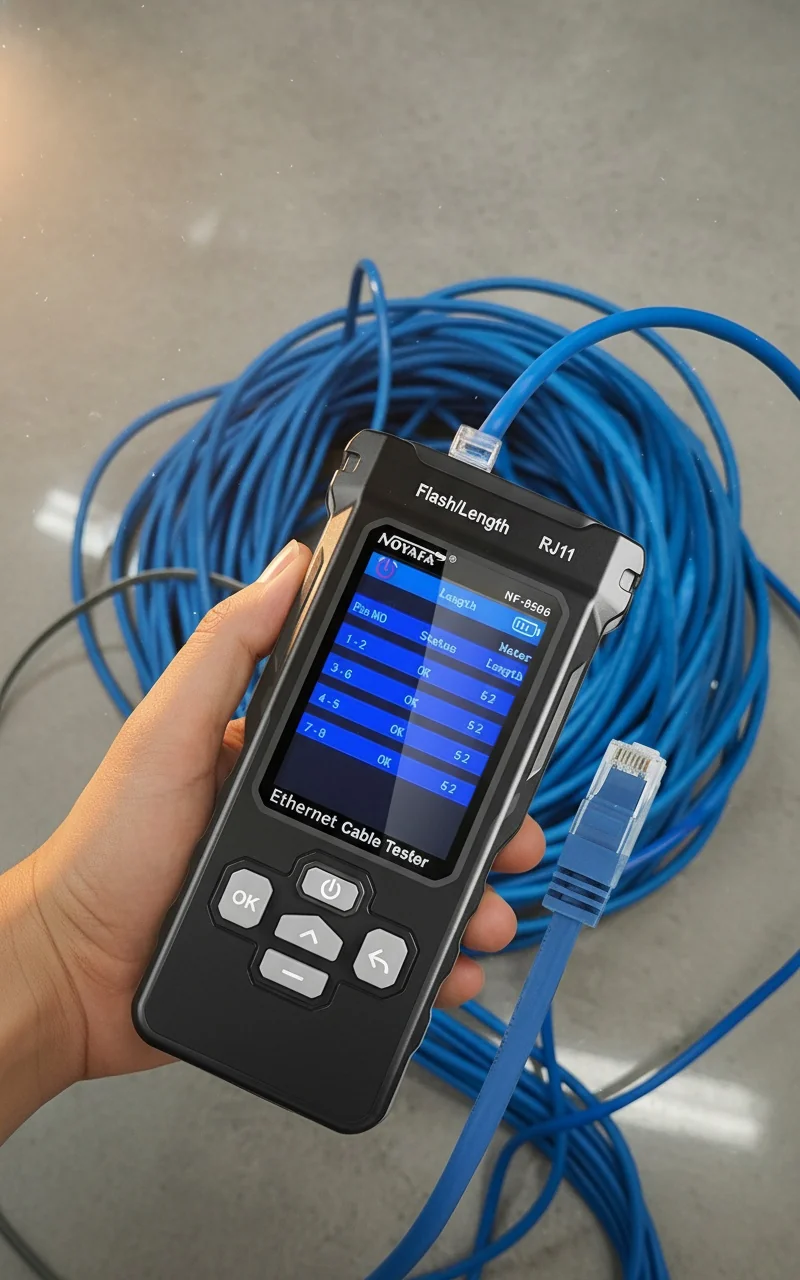

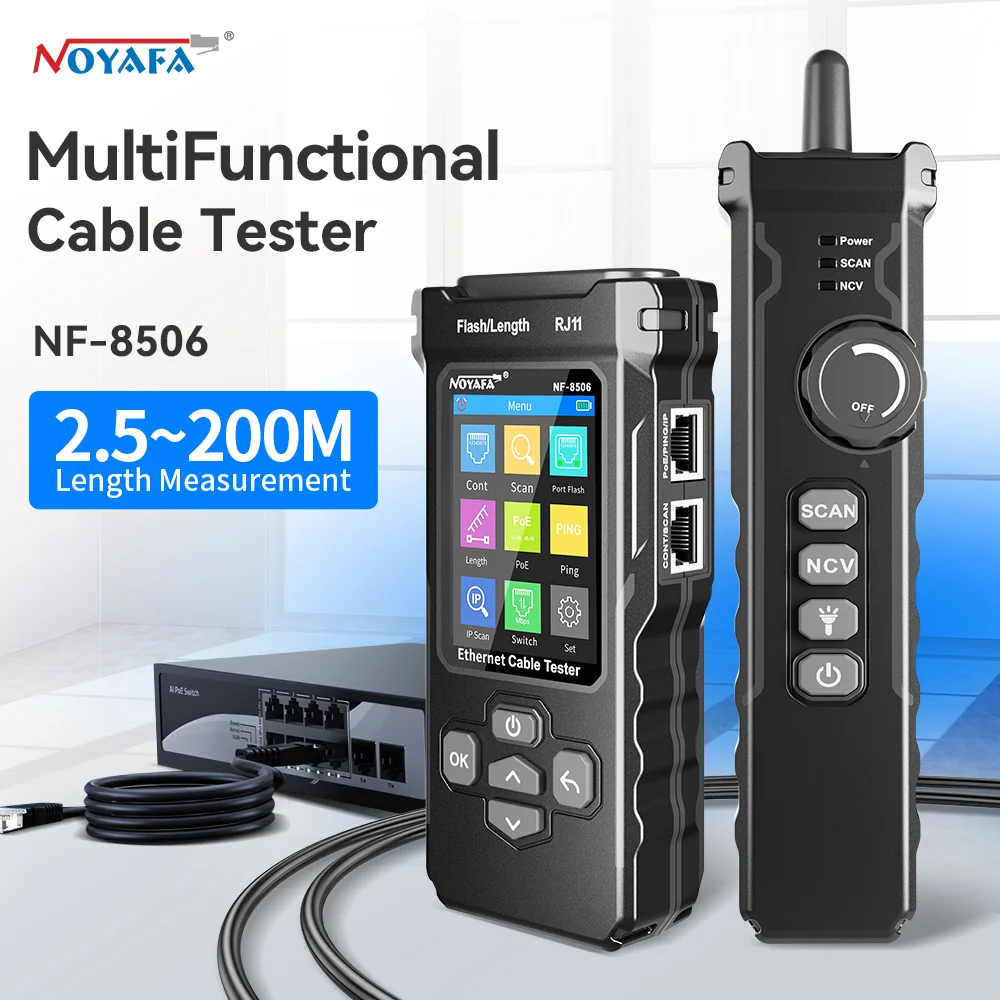

The NOYAFA NF-8506 is a multi-function LAN cable tester that combines wire mapping, PoE detection, cable length measurement, and tone generation in one handheld unit. At £194.08 with free UK delivery, it undercuts Fluke equivalents by roughly 80%.

Honestly, I've tried cheaper alternatives and they just don't cut it. Those basic LED testers tell you a cable passes or fails — that's it. No fault distance, no wire map detail, no tone function. The NF-8506 from NOYAFA's UK store gives you proper diagnostic data you can actually act on.

Build Quality and Practical Design

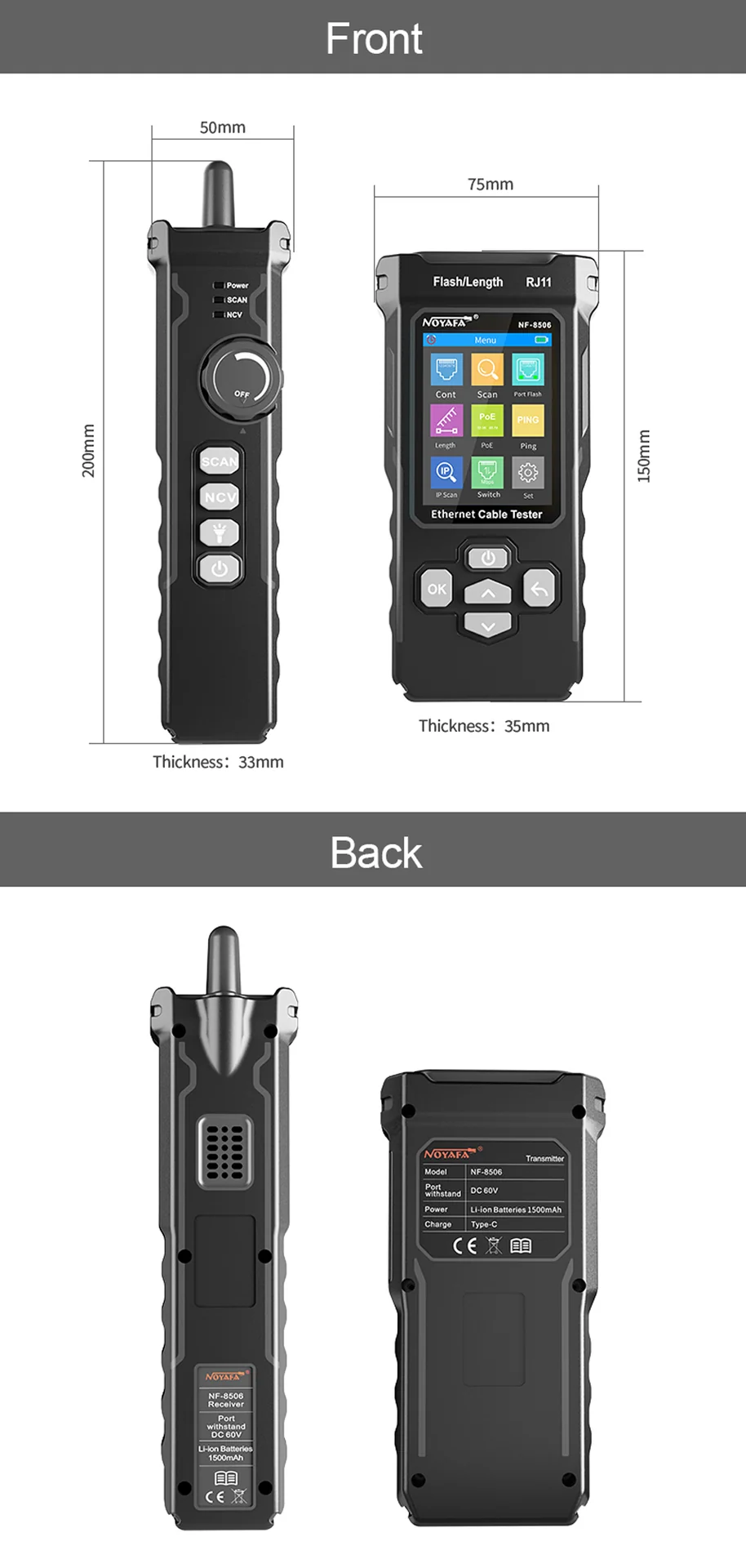

The unit feels solid. Not plasticky like some budget kit. The remote terminator clips onto your belt, which sounds minor but matters when you're up a ladder testing patch panels. Battery life is genuinely decent — I've gone weeks between changes on moderate use. (The AAA batteries are a nice touch too; you're not hunting for some obscure cell at 7am before a job.)

Worth the extra spend? If you're testing more than a couple of cables a month, absolutely. The time saved on fault-finding alone pays for itself within a single job., a favourite among Britain’s tradespeople

How to Test Ethernet Cable with a Cable Tester: Step-by-Step

Testing ethernet cable properly takes about 30 seconds per run once you know the process. Here's how to use a network cable tester like the NF-8506 for a full verification.

Basic Wire Map Test

1. Connect the main unit to one end of your cable run via the RJ45 port
2. Attach the remote terminator to the far end — this is where having a mate helps on longer runs
3. Power on and select "Wire Map" mode
4. Read results: The display shows pin-by-pin continuity. Green = pass. Any fault shows the specific pin number and fault type (open, short, crossed, split pair)
5. Check cable length: Switch to length mode for TDR-based measurement up to 350m

Split pairs are the sneaky ones. A cable with a split pair will pass a basic continuity test but fail miserably under real network load — you'll get packet loss, reduced ethernet speed test results, and intermittent dropouts. The NF-8506 catches these. Cheap testers don't.

Testing Installed Cables at the Patch Panel

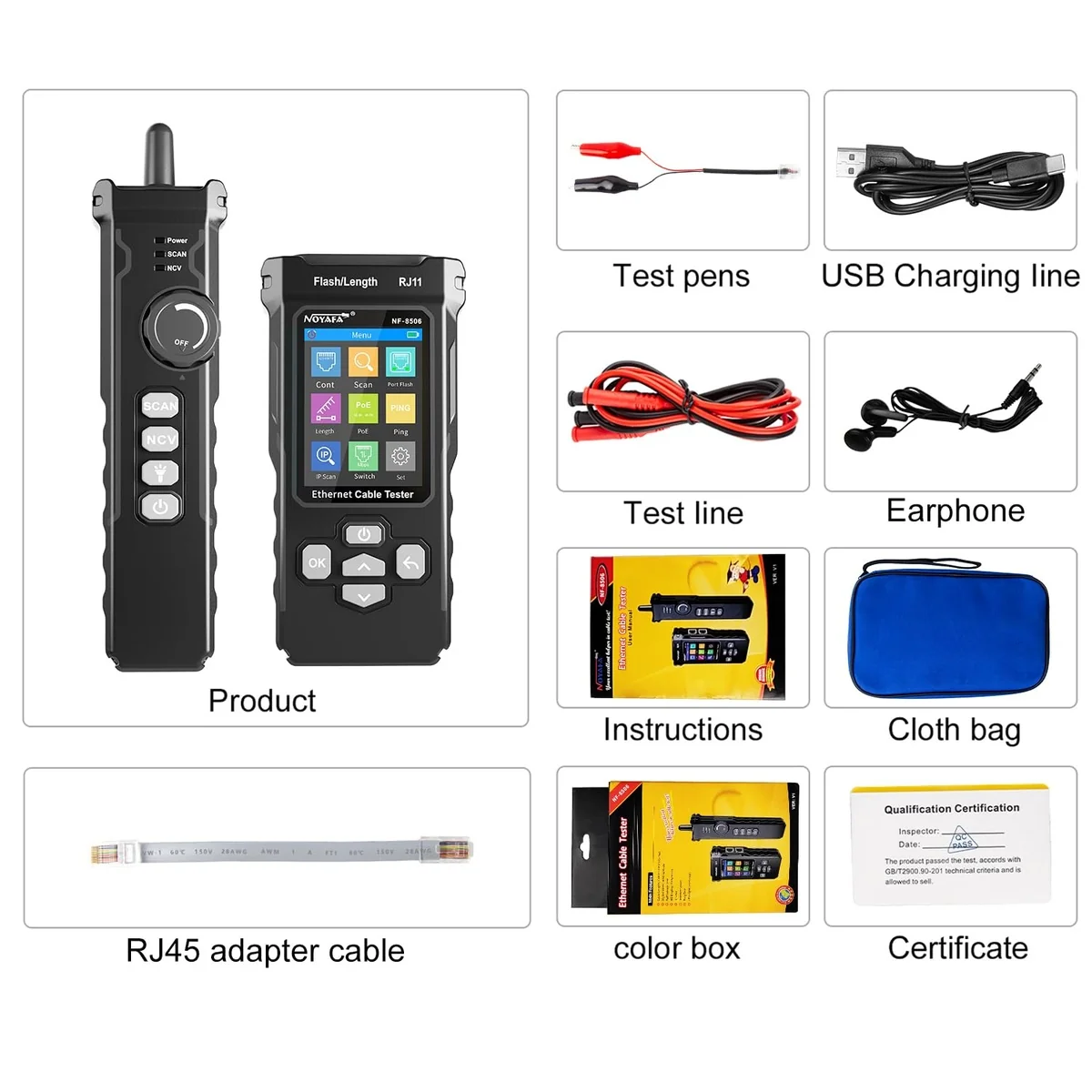

For structured cabling installations, plug the main unit into the patch panel port and have someone connect the remote at the wall outlet. Dead simple. The network cable tester kit includes numbered remote IDs, so you can identify which port maps to which outlet — brilliant for labelling up a new install.

You can also test without a second person if you pre-connect the remote and walk back to the panel. I do this all the time on solo jobs.

Cable Toner and Probe Kit: Tracing Hidden Cables Like a Pro

A cable toner and probe kit is what you reach for when cables disappear into walls, floor voids, or bundled trunking. The tone generator injects an audible signal onto the cable, and the inductive probe picks it up without needing direct contact. Essential for identifying unlabelled runs in older buildings.

How to Use the Tone Function on the NF-8506

1. Connect the toner output to the target cable (RJ45 or bare wire clips)
2. Set tone frequency — higher frequencies trace better through bundled cables
3. Move the probe along the cable route, listening for the strongest signal
4. At junction points or patch panels, touch the probe tip to individual ports to identify the correct one

I've used this exact method to trace a Cat5 cable through a 1960s office building in Rusholme where literally nothing was labelled. Took about 15 minutes to find the right run out of a bundle of 24. Without the toner? Could've been there all day.

Tips for Accurate Tracing

Keep the probe perpendicular to the cable for strongest pickup. In noisy environments (near fluorescent lighting or power cables), increase the tone frequency. The NF-8506 offers multiple tone patterns so you can distinguish your signal from background interference. For safety guidance on working near electrical installations, the HSE provides regulations on electrical work that every installer should follow.

UK Market Comparison: Finding the Best Ethernet Cable Tester UK Installers Trust

The UK market for network testing gear basically splits into three tiers: budget LED testers under £15, mid-range multi-function units like NOYAFA, and premium certification tools from Fluke. Here's how they stack up for real-world use in June 2026., meeting British quality expectations

The gap between budget and mid-range is enormous. The gap between mid-range and Fluke? For 90% of installation and troubleshooting work, it's marginal. You're paying for the Fluke badge and certification-level reporting that most jobs don't require.

My mate who's an electrician swears by the NF-8506, and I get why. It does everything he needs for network cable installation verification without the Fluke price tag. For the best network cable tester UK electricians can justify on their tool budget, NOYAFA hits the sweet spot.

Check the full range of ethernet cable testers available with UK shipping and support.

Cat5 and Cat6 Troubleshooting: Common UK Installation Faults

Most cable faults fall into predictable categories. Knowing what your cat6 cable tester is telling you saves hours of guesswork. Here are the faults I see most often on UK installations.

Open Circuit (Pin Disconnection)

Usually caused by a poor termination or a cable that's been nicked during installation. The NF-8506 shows which pin is open and the distance to the break. If it's at 0.5m or 47m, you know whether the fault is at the patch panel or the wall socket end. Spot on for narrowing things down.

Short Circuit (Pins Bridged)

Two conductors touching — often from over-stripped sheathing or a crushed cable under a cable tie pulled too tight. Common in ceiling void runs where cables get pinched against trunking edges.

Crossed Pairs / Miswire

Someone's terminated to T568A at one end and T568B at the other. Or they've just got the colour code wrong. The wire map function shows exactly which pins are swapped. Quick re-termination sorts it.

Split Pairs — The Silent Killer

This is the one that catches people out. A split pair means the correct pins show continuity, but the physical wire pairs are wrong. The cable "works" for basic connectivity but crosstalk destroys performance above 100Mbps. Your cat5 cable tester must specifically test for this — and the NF-8506 does., popular across England

For installations that need to meet BS EN 50173 structured cabling standards, documenting test results is part of the sign-off process. The NF-8506's clear LCD readout makes recording results straightforward, even if you're just noting them on a job sheet.

PoE Verification on Active Networks

Testing on live networks? The PoE detection feature identifies whether a port is delivering power before you start unplugging things. Important in environments with PoE-powered CCTV cameras or access points where disconnection triggers alarms. Always check before you pull a cable — ask me how I know.

Key Takeaways

• The best network cable tester UK professionals need in 2026 balances diagnostic depth with value — the NOYAFA NF-8506 delivers wire mapping, TDR, PoE detection, and tone generation for £194.08.
• Budget LED testers can't detect split pairs, which cause performance failures invisible to basic continuity checks.
• A cable toner and probe kit is essential for tracing unlabelled runs — the NF-8506 includes this function built-in, eliminating the need for separate tools.
• TDR cable length measurement (±1m to 350m) pinpoints fault locations without physically accessing the entire cable run.
• PoE detection prevents accidental disconnection of powered devices on live networks — critical for CCTV and access point installations.
• For 90% of UK installation and maintenance work, a mid-range RJ45 cable tester like the NF-8506 provides the same practical functionality as tools costing £300+.
• Always test for split pairs on Cat5e and Cat6 runs — they pass basic tests but fail under gigabit loads.
